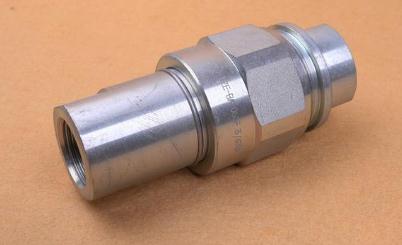

快速管件接頭(圖紙-尺寸)

Series KIS-TF 螺紋鎖緊式快速接頭

止回閥類型Valve style：錐形閥Poppet
鎖定裝置Locking:螺紋鎖緊Screw Type
材料Materials:碳鋼Steel
尺寸Size:3/9”-1”
額定流量Flow capacity:25L/Min～105L/Min
額定壓力Max.working pressure:40 Mpa
互換性Interchange:Parker QHPA,Faster CVV

Series PD測試用液壓快速接頭

止回閥類型Valve style：Flush-faced
鎖定裝置locking:鋼珠
材料Materials:不銹鋼 Stainless steel
尺寸Size:1/8”
額定流量Flow capacity:5L/Min
額定壓力Max.working pressure:42 Mpa
互換性Interchange:Parker PD Series

Series KZE普通型快速接頭

止回閥類型Valve style：錐形閥 Poppet
鎖定裝置locking:鋼珠 Ball Locking
材料Materials:碳鋼 Steel
尺寸Size: 14”-2”
額定流量Flow capacity:11L/Min～700L/Min
額定壓力Max.working pressure:34.5Mpa～7Mpa

Series LKJ超高壓快速接頭

止回閥類型Valve style：平面閥 Flush-Faced Poppet
鎖定裝置locking:鋼珠 Ball Locking
材料Materials:碳鋼 Steel
尺寸Size:1/4”
額定流量Flow capacity:12L/Min
額定壓力Max.working pressure:70 Mpa

Series MD模具專用快速接頭

止回閥類型Valve style：開放式單封閉
Unvalved OR One Shut-off
鎖定裝置locking:鋼珠 Ball Locking
材料Materials:黃銅 Brass
尺寸Size: 1/4”,3/8” 1/2”
額定流量Flow capacity:11L/Min,22L/Min,45L/Min
額定壓力Max.working pressure:1.6Mpa
互換性Interchange:Parker Moldmate

Series310 B6標準型氣動快速接頭

流  量：Flow Capaclty:925L/Min
有效通徑Nominal flow dia:5.5mm
材質 Material:
母體 Socket:黃銅/碳鋼鍍鎳 Nickel-
plated brass/steel
插  頭 Plug:碳鋼鍍鋅 Hardened zinc-
plated steel
溫度范圍Temperature range:-20° C to+100°C
最大工作壓力 Max.working pressure:35 Bar
標準和互換性 Standard and Compatibility:
ISO 6150B-1/4,美式 MIL-C-4109 1/4
樂可利 Legris series23、24,利達時 Tema 1400,
派克 Parker 20-1/4,30-1/4,特馬 Tema 1400,
特征 Feature:
單手鎖定 One-hand operated
無撓流閥體設計 Unbaffled design poppet

Series430 B8標準型氣動快速接頭

流  量：Flow Capaclty:2350L/Min
有效通徑Nominal flow dia:8.5mm
材質 Material:
母體 Socket:黃銅/碳鋼鍍鎳 Nickel-
plated brass/steel
插  頭 Plug:碳鋼鍍鋅 Hardened zinc-
plated steel
溫度范圍Temperature range:-20° C to+100°C

Series PIN lock 氣動快速接頭

流  量：Flow Capaclty:925L/Min,2350L/Min,3750L/Min
有效通徑Nominal flow dia:5.5mm,8.5mm,11.5mm
材質 Material:
母體 Socket:黃銅 brass
溫度范圍Temperature range:-20° C ～100°C
最大工作壓力 Max.working pressure:35 Bar
標準和互換性 Standard and Compatibility:
ISO 6150B-,1/4,,3/8,1/2,美式 MIL-C-4109
特征 Feature:
單手鎖定 One-hand operated
無撓流閥體設計 Unbaffled design poppet

Series 21 防誤插迷你型快速接頭

流  量：Flow Capaclty:530L/Min
有效通徑Nominal flow dia:5mm
材質 Material:
母體 Socket:黃銅鍍鎳 Nickel-plated brass
插頭Plug:黃銅鍍鎳 Nickel-plated brass
溫度范圍（丁腈）Temperature range:-20° C ～80°C
最大工作壓力 Max.working pressure:35 Bar
標準和互換性 Standard and Compatibility:
利達時Rectus 21 特征 Feature:
單手鎖定 One-hand operated
微型體積 Mini size
不同的介質彩色鋁圈區別For the optical distinc-tion of different
medium circulations with coloured and anodised aluminium.

Series 20 超小型氣動快速接頭

流  量：Flow Capaclty:165L/Min
有效通徑Nominal flow dia:2.7mm
材質 Material:
母體 Socket:黃銅鍍鎳 Nickel-plated brass
插頭Plug:黃銅鍍鎳 Nickel-plated brass

Series 320 歐洲標準型氣動快速接頭

流  量：Flow Capaclty:2100L/Min
有效通徑Nominal flow dia:7.6mm
材質 Material:
母體 Socket:黃銅/碳鋼鍍鎳
Nickel-plated brass/steel
插頭Plug:碳鋼鍍鋅 Hardened zinc-plated steel
