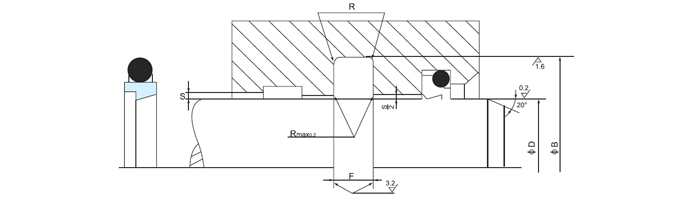

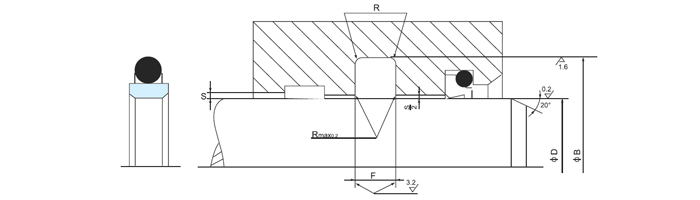

格來圈/斯特封(圖紙-尺寸)
軸用格來圈
| Pull Rod Diameter 拉桿直徑ФDf8 | Groove Inner Diameter 溝槽外徑 | Groove Width 溝槽寬度 | Diametral clearance 徑向間隙 | S max** Max Radius 半徑 | O Ring Inner Diameter O型圈 內徑 | O Ring Diameter O型圈 線徑 | |||
| Overloading Series 重載系列 | Standard Series 標準系列 | Light Load Series 輕載系列 | |||||||
| - | - | - | B h9 | F+0.2 | 0-20Mpa | 20-40Mpa | R | - | - |
| - | 3-7.9 | - | d+4.9 | 2.2 | 0.6-0.4 | 0.4-0.3 | 0.3-0.5 | d+2 | 1.78 |
| - | 8-18.9 | 8-18.9 | d+7.3 | 3.2 | 0.8-0.5 | 0.5-0.3 | 0.5-0.8 | d+3.5 | 2.62 |
| 8-18.9 | 19-37.9 | 19-37.9 | d+10.7 | 4.2 | 0.8-0.5 | 0.5-0.4 | 0.8-1.2 | d+5 | 3.53 |
| 19-37.9 | 38-199.9 | 38-199.9 | d+15.1 | 6.3 | 1.0-0.6 | 0.6-0.4 | 1.2-1.5 | d+7 | 5.33 |
| 38-199.9 | 200-255.9 | 200-255.9 | d+20.5 | 8.1 | 1.0-0.6 | 0.6-0.5 | 1.5-2.0 | d+9.5 | 7.00 |
| 200-255.9 | 256-649.9 | 256-649.9 | d+24.0 | 8.1 | 1.2-1.0 | 1.0-0.6 | 1.5-2.0 | d+13 | 7.00 |
| 256-649.9 | 650-999.9 | 650-999.9 | d+27.3 | 9.5 | 1.4-1.0 | 1.0-0.7 | 2.0-3.0 | d+14.5 | 8.40 |
**高壓時，S max=H7-f7（缸筒-活塞）
| Pull Rod Diameter 拉桿直徑ФDf8 | Groove Inner Diameter 溝槽內徑 | Groove Width 溝槽寬度 | Diametral clearance 徑向間隙 | S max** Max Radius 最大半徑 | O Ring Inner Diameter O型圈內徑 | O Ring Diameter O型圈 | |||
| Overloading Series 重載系列 | Standard Series 標準系列 | Light Load Series 輕載系列 | |||||||
| - | - | - | B h9 | F+0.2 | 0-20Mpa | 20-40Mpa | R | - | - |
| - | 3-7.9 | 8-18.9 | d+4.9 | 2.2 | 0.6-0.4 | 0.4-0.3 | 0.3-0.5 | d+2 | 1.78 |
| - | 8-18.9 | 19-37.9 | d+7.3 | 3.2 | 0.8-0.5 | 0.5-0.3 | 0.5-0.8 | d+3.5 | 2.62 |
| 8-18.9 | 19-37.9 | 38-199.9 | d+10.7 | 4.2 | 0.8-0.5 | 0.5-0.4 | 0.8-1.2 | d+5 | 3.53 |
| 19-37.9 | 38-199.9 | 200-255.9 | d+15.1 | 6.3 | 1.0-0.6 | 0.6-0.4 | 1.2-1.5 | d+7 | 5.33 |
| 38-199.9 | 200-255.9 | 256-649.9 | d+20.5 | 8.1 | 1.0-0.6 | 0.6-0.5 | 1.5-2.0 | d+9.5 | 7.00 |
| 200-255.9 | 256-649.9 | 650-999.9 | d+24.0 | 8.1 | 1.2-1.0 | 0.8-0.6 | 1.5-2.0 | d+13 | 7.00 |
| 256-649.9 | 650-999.9 | - | d+27.3 | 9.5 | 1.4-1.0 | 1.0-0.7 | 2.0-3.0 | d+14.5 | 8.40 |
軸用格來圈尺寸表 Size Table of Axis Glyd Ring
Pull Rod Diameter 拉桿直徑Df8 | Groove Inner Diameter 溝槽外徑 Bh9 | Groove Width 溝槽寬度 F+0.2 | Item NO. 型號 | Pull Rod Diameter 拉桿直徑 Df8 | Groove Inner Diameter 溝槽外徑 Bh9 | Groove Width 溝槽寬度F+0.2 | Item NO. 型號 |
4 | 8.9 | 2.2 | ZG1043-0040 | 56 | 71.1 | 6.3 | ZG1043-0560 |
5 | 9.9 | 2.2 | ZG1043-0050 | 56 | 66.7 | 4.2 | ZG1045-0560 |
6 | 10.9 | 2.2 | ZG1043-0060 | 60 | 75.1 | 6.3 | ZG1043-0600 |
7 | 11.9 | 2.2 | ZG1043-0070 | 60 | 70.7 | 4.2 | ZG1045-0600 |
8 | 15.3 | 3.2 | ZG1043-0080 | 63 | 78.1 | 6.3 | ZG1043-0630 |
8 | 12.9 | 2.2 | ZG1045-0080 | 65 | 80.1 | 6.3 | ZG1043-0650 |
10 | 17.3 | 3.2 | ZG1043-0100 | 70 | 85.1 | 6.3 | ZG1043-0700 |
10 | 14.9 | 2.2 | ZG1045-0100 | 75 | 90.1 | 6.3 | ZG1043-0750 |
12 | 19.3 | 3.2 | ZG1043-0120 | 80 | 95.1 | 6.3 | TS1043-0800 |
12 | 16.9 | 2.2 | ZG1045-0120 | 85 | 100.1 | 6.3 | ZG1043-0850 |
14 | 21.3 | 3.2 | ZG1043-0140 | 90 | 105.1 | 6.3 | ZG1043-0900 |
14 | 18.9 | 2.2 | ZG1045-0140 | 95 | 110.1 | 6.3 | ZG1043-0950 |
16 | 23.3 | 3.2 | ZG1043-0160 | 100 | 115.1 | 6.3 | ZG1043-1000 |
16 | 20.9 | 2.2 | ZG1045-0160 | 105 | 120.1 | 6.3 | ZG1043-1050 |
18 | 25.3 | 3.2 | ZG1043-0180 | 110 | 125.1 | 6.3 | ZG1043-1100 |
18 | 22.9 | 2.2 | ZG1045-0180 | 115 | 130.1 | 6.3 | ZG1043-1150 |
20 | 30.7 | 4.2 | ZG1043-0200 | 120 | 135.1 | 6.3 | ZG1043-1200 |
20 | 27.3 | 3.2 | ZG1045-0200 | 125 | 140.1 | 6.3 | ZG1043-1250 |
22 | 32.7 | 4.2 | ZG1043-0220 | 130 | 145.1 | 6.3 | ZG1043-1300 |
22 | 29.3 | 3.2 | ZG1045-0220 | 135 | 160.1 | 6.3 | ZG1043-1350 |
25 | 35.7 | 4.2 | ZG1043-0250 | 140 | 155.1 | 6.3 | ZG1043-1400 |
25 | 32.3 | 3.2 | ZG1045-0250 | 150 | 165.1 | 6.3 | ZG1043-1500 |
30 | 40.7 | 4.2 | ZG1043-0300 | 160 | 175.1 | 6.3 | ZG1043-1600 |
30 | 37.3 | 3.2 | ZG1045-0300 | 170 | 185.1 | 6.3 | ZG1043-1700 |
32 | 42.7 | 4.2 | ZG1043-0320 | 180 | 195.1 | 6.3 | ZG1043-1800 |
32 | 39.3 | 3.2 | ZG1045-0320 | 190 | 205.1 | 6.3 | ZG1043-1900 |
36 | 46.7 | 4.2 | ZG1043-0360 | 200 | 220.5 | 8.1 | ZG1043-2000 |
36 | 43.3 | 3.2 | ZG1045-0360 | 210 | 230.5 | 8.1 | ZG1043-2100 |
40 | 55.1 | 6.3 | ZG1043-0400 | 220 | 240.5 | 8.1 | ZG1043-2200 |
40 | 50.7 | 4.2 | ZG1045-0400 | 230 | 250.5 | 8.1 | ZG1043-2300 |
45 | 60.1 | 6.3 | ZG1043-0450 | 240 | 260.5 | 8.1 | ZG1043-2400 |
45 | 55.7 | 4.2 | ZG1045-0450 | 250 | 270.5 | 8.1 | ZG1043-2500 |
50 | 65.1 | 6.3 | ZG1043-0500 | 260 | 284.0 | 8.1 | ZG1043-2600 |
50 | 60.7 | 4.2 | ZG1045-0500 | 270 | 294.0 | 8.1 | ZG1043-2700 |
