O型圈/包氟O型圈/星型圈/Y型2

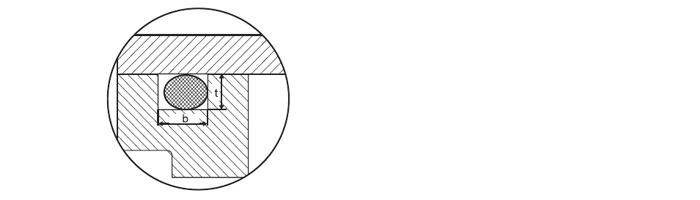

O型圈/星型圈開槽尺寸建議參數：
Parameters of O Ring/X Ring Slotting Dimension
| 密封圈線徑C/S | 槽深T | 槽寬B | 密封圈線徑C/S | 槽深T | 槽寬B |
| 1.00 | 0.80 | 1.3 | 5.00 | 4.00 | 6.5 |
| 1.50 | 1.10 | 1.9 | 5.33 | 4.30 | 6.9 |
| 1.60 | 1.20 | 2.1 | 5.50 | 4.50 | 7.1 |
| 1.78 | 1.30 | 2.3 | 5.70 | 4.65 | 7.4 |
| 1.90 | 1.40 | 2.4 | 6.00 | 4.95 | 7.8 |
| 2.00 | 1.50 | 2.6 | 6.50 | 5.40 | 8.4 |
| 2.40 | 1.80 | 3.1 | 6.99 | 5.85 | 9.1 |
| 2.50 | 1.90 | 3.2 | 7.00 | 5.85 | 9.1 |
| 2.62 | 2.00 | 3.4 | 7.50 | 6.30 | 9.7 |
| 2.70 | 2.10 | 3.5 | 8.00 | 6.75 | 10.4 |
| 3.00 | 2.30 | 3.9 | 8.40 | 7.15 | 10.9 |
| 3.50 | 2.70 | 4.5 | 8.50 | 7.25 | 11.0 |
| 3.53 | 2.70 | 4.5 | 9.00 | 7.70 | 11.7 |
| 3.60 | 2.80 | 4.7 | 9.50 | 8.20 | 12.3 |
| 4.00 | 3.15 | 5.2 | 10.00 | 8.65 | 13.0 |
| 4.50 | 3.60 | 5.8 | - | - | - |

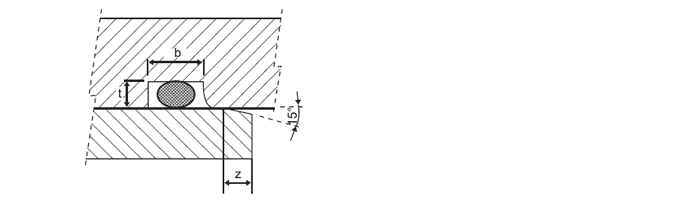

O型圈/星型圈以液體作介質時 Liquid as Medium
|
線徑
|
槽深
|
槽寬
|
軸桿導角
|
線徑
|
槽深
|
槽寬
|
軸桿導角
|
|
1.00
|
0.90
|
1.3
|
1.0
|
5.00
|
4.45
|
6.0
|
2.5
|
|
1.50
|
1.30
|
1.9
|
1.0
|
5.33
|
4.70
|
6.4
|
2.7
|
|
1.60
|
1.40
|
2.0
|
1.1
|
5.50
|
4.95
|
6.6
|
2.8
|
|
1.78
|
1.50
|
2.0
|
1.1
|
5.70
|
5.10
|
6.9
|
3.0
|
|
1.90
|
1.60
|
2.4
|
1.2
|
6.00
|
5.40
|
7.2
|
3.1
|
|
2.00
|
1.70
|
2.4
|
1.2
|
6.50
|
5.80
|
7.8
|
3.3
|
|
2.40
|
2.10
|
2.9
|
1.4
|
6.99
|
6.30
|
8.4
|
3.6
|
|
2.50
|
2.20
|
3.0
|
1.4
|
7.00
|
6.30
|
8.4
|
3.6
|
|
2.62
|
2.30
|
3.1
|
1.5
|
7.50
|
6.70
|
9.0
|
3.8
|
|
2.70
|
2.40
|
3.2
|
1.5
|
8.00
|
7.20
|
9.6
|
4.0
|
|
3.00
|
2.60
|
3.6
|
1.6
|
7.40
|
7.60
|
10.1
|
4.2
|
|
3.50
|
3.10
|
4.2
|
1.8
|
8.50
|
7.70
|
10.2
|
4.2
|
|
3.53
|
3.10
|
4.2
|
1.8
|
9.00
|
8.20
|
10.8
|
4.3
|
|
3.60
|
3.20
|
4.3
|
1.8
|
9.50
|
8.60
|
11.4
|
4.4
|
|
4.00
|
3.50
|
4.8
|
2.0
|
10.00
|
9.10
|
12.0
|
4.5
|
|
4.50
|
4.00
|
5.4
|
2.3
|
-
|
-
|
-
|
-
|
O型圈/星型圈以氣體作介質時 Gas as Medium.jpg)
|
線徑C/S
|
槽深T
|
槽寬B
|
軸桿導角Z
|
線徑C/S
|
槽深T
|
槽寬B
|
軸桿導角Z
|
|
1.00
|
0.95
|
1.3
|
1.0
|
5.00
|
4.65
|
6.0
|
2.5
|
|
1.50
|
1.35
|
1.9
|
1.0
|
5.33
|
4.95
|
6.4
|
2.7
|
|
1.60
|
1.45
|
2.0
|
1.1
|
5.50
|
5.15
|
6.6
|
2.8
|
|
1.78
|
1.55
|
2.3
|
1.1
|
5.70
|
5.35
|
6.9
|
3.0
|
|
1.90
|
1.75
|
2.4
|
1.2
|
6.00
|
5.65
|
7.2
|
3.1
|
|
2.00
|
1.80
|
2.4
|
1.2
|
6.50
|
6.10
|
7.8
|
3.3
|
|
2.40
|
2.15
|
2.9
|
1.4
|
6.99
|
6.60
|
8.4
|
3.6
|
|
2.50
|
2.25
|
3.0
|
1.4
|
7.00
|
6.60
|
8.4
|
3.6
|
|
2.62
|
2.35
|
3.1
|
1.5
|
7.50
|
7.10
|
9.0
|
3.8
|
|
2.70
|
2.45
|
3.2
|
1.5
|
8.00
|
7.60
|
9.6
|
4.0
|
|
3.00
|
2.75
|
3.6
|
1.6
|
8.40
|
7.90
|
10.1
|
4.2
|
|
3.50
|
3.25
|
4.2
|
1.8
|
8.50
|
8.00
|
10.2
|
4.2
|
|
3.53
|
3.25
|
4.2
|
1.8
|
9.00
|
8.50
|
10.8
|
4.3
|
|
3.60
|
3.35
|
4.3
|
1.8
|
9.50
|
9.00
|
11.4
|
4.4
|
|
4.00
|
3.70
|
4.8
|
2.0
|
10.00
|
9.50
|
12.0
|
4.5
|
|
4.50
|
4.20
|
5.4
|
2.3
|
-
|
-
|
-
|
-
|
